The Pickit URCap interface

Pickit integrates seamlessly with Universal Robots by means of a URCap plugin. This plugin exposes a set of Pickit specific command blocks that make the creation of vision-guided programs simple and easy. This article documents the interface of the Pickit URCap plugin. For installation instructions please refer to the URCap installation and setup article.

Global variables

To use one of the global variables defined by the Pickit plugin, you need to declare it in the BeforeStart section of the program. You only need to declare the variables you actually use in your program.

pickit_pose

Pick pose for the latest detection results sent by Pickit, represented as a 6D array. The sequence of commands to get a valid and reachable pick pose is:

  1. Declare the variable in the BeforeStart section of the program.

    ../../../_images/urcap-beforestart.png
  2. In the Robot Program section, send a request to Pickit using Find object(s) or Get next object command.

  3. Wait for detection result using Get Result command.

  4. Check that a valid detection is available by calling pickit_object_found().

  5. Check that the robot can reach the pose by calling pickit_object_reachable().

Refer to the URCap example picking program article for a detailed usecase description.

pickit_pre_pose
Pre-pick pose for the latest detection results sent by Pickit, represented as a 6D array. The sequence of commands to get a valid and reachable pre-pick pose is the same as for pickit_pose. Refer to the documentation of pickit_pose for more details. For details on how pickit_pre_pose is computed from pickit_pose, refer to the documentation of the Get result command.
pickit_dim

Object dimensions, in meters, for the latest detection results sent by Pickit, represented as a 3D array. This is how to interpret the array according to the object type:

  • Square [length, length, 0]
  • Rectangle [length, width, 0]
  • Circle [diameter, diameter, 0]
  • Ellipse [length, width, 0]
  • Cylinder [length, diameter, diameter]
  • Sphere [diameter, diameter, diameter]
  • Point cloud (Pickit Teach model) [bbox x, bbox y, bbox z]
  • Blob [bbox x, bbox y, bbox z]

where bbox x means the size of the bounding box along the x-axis.

The sequence of commands to get valid object dimensions is the same as for pickit_pose. Refer to the documentation of pickit_pose for more details.

pickit_type

Object type, as an integer identifier, for the latest detection results sent by Pickit. The mapping between object shape and identifier follows:

  • Square 21
  • Rectangle 22
  • Circle 23
  • Ellipse 24
  • Cylinder 32
  • Sphere 33
  • Point cloud (Pickit Teach model) 35 From version 1.9+ this variable is no longer 35 with the Pickit Teach detection engine, but representing the ID Teach model the object was detected from.
  • Blob 50

The sequence of commands to get a valid object type is the same as for pickit_pose. Refer to the documentation of pickit_pose for more details.

Commands

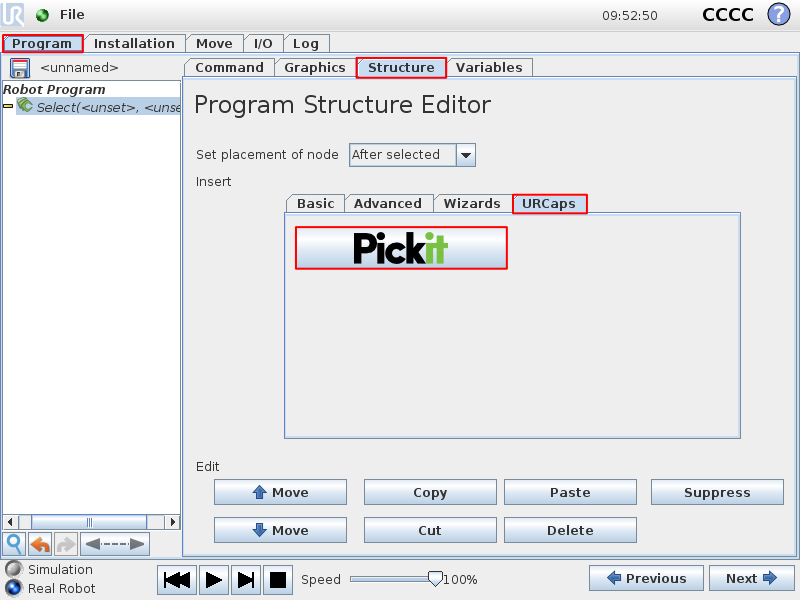

The Pickit plugin provides a set of commands that add to the set of Polyscope’s existing commands. They can be accessed from within the Program tab, under Structure > URCaps, and clicking the Pickit button.

../../../_images/urcap-command.png

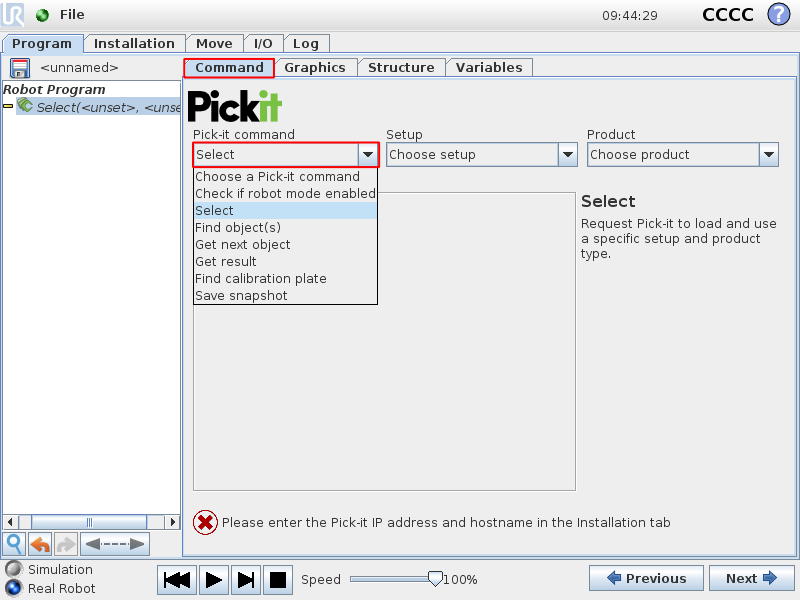

To insert a new command, navigate to the Command tab select an entry from the Pickit command drop-down. When a command is selected, a brief description is shown on the rightmost part of the page. Some commands require the specification of input parameters.

../../../_images/urcap-command-dropdown.png
Check if robot mode enabled

Checks whether robot mode is enabled in Pickit.

  • If robot mode is enabled, program execution continues
  • If robot mode is not enabled, a pop-up is shown requesting the user to set Pickit to robot mode.

Except for Find calibration plate, all other Pickit plugin commands require robot mode to be enabled. Robot mode is enabled from the Pickit web interface.

Select

Loads the specified setup and product configuration. This configuration specifies the behavior of Pickit detections, e.g. what to look for, in which part of the field of view.

Parameters

  • Setup

    Any of the setup configurations currently available in the connected Pickit system.

  • Product

    Any of the product configurations currently available in the connected Pickit system.

Available configurations are listed in drop-down menus.

Find object(s)

Trigger a Pickit object detection using the currently active setup and product configuration.

The next Pickit command after Find object(s) should always be Get result, which waits until a response for the detection request is ready.

Note that it’s valid (and sometimes encouraged) to perform robot motions or other non Pickit actions between calls to Find object(s) and Get result, for instance.

../../../_images/urcap-find-1.png ../../../_images/urcap-find-2.png

Refer to the cycle time optimization section of the URCap example picking program article for the motivation behind performing robot motions while a Pickit detection is.

Get next object

Request the next detected object.

A single call to Find object(s) might yield the detection of multiple objects. Get next object allows to request the next available object, if any, without the need of triggering a new detection and the time overhead it entails.

The next Pickit command after  Get next object should always be Get result, which waits until a response for the request is ready.

../../../_images/urcap-next-1.png

It’s recommended to use this command only when objects in the detection region have not moved (significantly) since calling Find object(s). A good example of when to use Get next object is when a detection is unreachable by the robot. An example of when using Get next object is not ideal would be the following bin picking scenario:

  • Trigger Pickit detection that finds multiple objects.
  • First object is picked. Since objects are randomly placed in bin, neighboring objects move and fall into place.
  • Call Get next object and attempt to pick next object. If the next object is one of the neighboring parts that moved, the pick might fail.

When the objects in the detection region have moved, it’s better to re-trigger  Find object(s) instead.

Get result

Wait for Pickit reply with detection results. Get result should always be the next Pickit command after a Find object(s) or Get next object request. It blocks until a reply from Pickit is received, and the success of the request can then be queried by calling pickit_object_found(). When an object has been found, the following global variables are populated:

  • Object pick pose: pickit_pose
  • Object pre-pick pose: pickit_pre_pose. This pose is computed by applying an offset to pickit_pose along a specified direction, as specified by the command parameters.
  • Object dimensions: pickit_dim
  • Object type: pickit_type

Parameters

  • Pre-pick offset: base frame

    pickit_pre_pose is computed by applying an offset along the z-axis of the specified frame. Valid options are object frame or robot base frame.

  • Pre-pick offset

    Offset in mm applied to compute pickit_pre_pose.

Find calibration plate
Trigger detection of the robot-camera calibration plate. This command requires the Pickit web interface to be in the Calibration page, hence robot mode should be disabled. When Pickit is not in the Calibration page, a pop-up is shown.
Save snapshot
Save a snapshot with the latest detection results. The saved snapshot can then be loaded or downloaded by going to the Snapshots page on the Pickit web interface and searching for a file whose name contains the capture timestamp.
Build background

Build the background cloud used in advanced Region of Interest filters.

Calling this function will trigger a camera capture, so if the camera mount is fixed, the robot must not occlude the camera view volume. If instead the camera is robot-mounted, the robot must be in the same pose used for object detection.

Helper functions

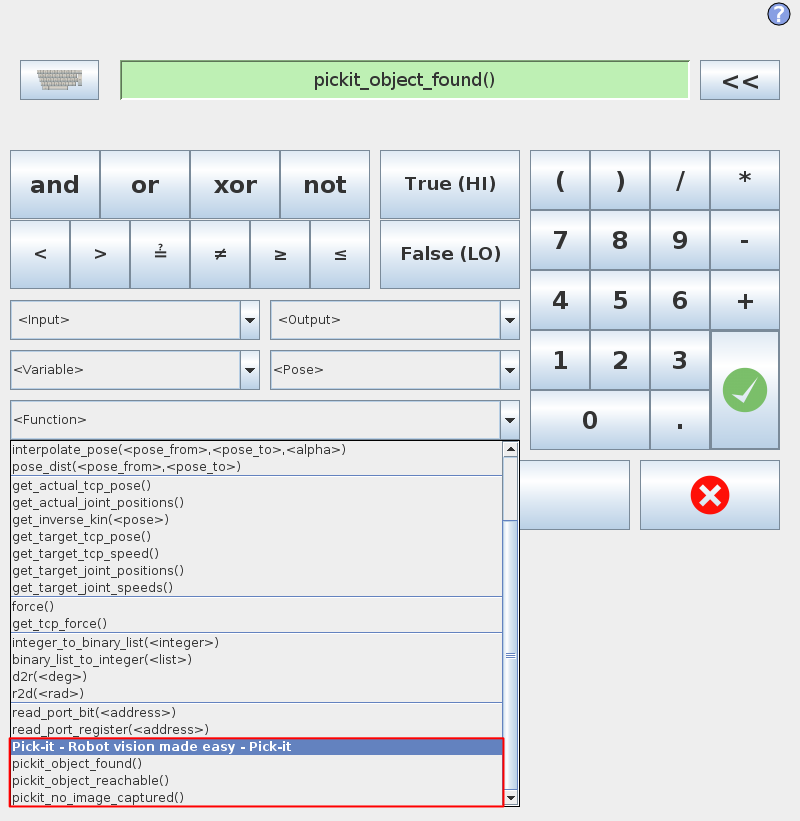

As opposed to commands, that don’t have a return value; the Pickit plugin also exposes a number of helper functions that return useful information. They typically are used as the expression of a conditional, such as an if statement, and can be selected from the available functions drop-down.

../../../_images/urcap-helper-functions-dropdown.png
pickit_empty_roi()

Check if the last call to Get result detected an empty Region of Interest (ROI).

Return

true if Pickit detected an empty ROI.

When pickit_object_found() returns false, it can be due to:

  1. The ROI is not empty, but Pickit doesn’t detect the active product.
  2. The ROI is empty.

Use this function if you need to discriminate between these two situations.

pickit_object_found()

Check if the last call to Get result produced valid detection results.

Return

true if detection results are available.

When results are available, the global variables pickit_pre_pose and pickit_pose have valid contents.

This function returns false when Pickit replied with no detection results (nominal usecase); or if called without making a request to Pickit and collecting the results with Get result (should be avoided, as it makes no sense).

pickit_object_reachable()

Check if the last call to Get result produced reachable pick and pre-pick poses.

Return

true if the global variables pickit_pre_pose and ``pickit_pose`` contain poses that are reachable by the robot.

Note that pickit_object_reachable() == true implies pickit_object_found() == true.

pickit_no_image_captured()

Check if object detection was unsuccessful due to a failure to capture a camera image.

When this is the case, it typically indicates a hardware disconnection issue, such as a loose connector or broken cable. This function can be used as trigger to send an alarm to a higher level monitoring system.

Return
true if object detection was unsuccessful due to a failure to capture a camera image.
pickit_remaining_objects()

Get the number of remaining object detections. After calling Get result, this function returns the total number of object detections minus one, as the first object data is available through the Global variables.

This value is also equal to the number of times Get next object can be called. As such, the returned value decreases with each call to Get next object.

Return
Number of remaining object detections available for query.
