Object ordering

When multiple objects are detected, object ordering determines the order in which they should be picked. The following strategies are available:

  • Highest pick: Sort objects by their pick point location, from largest to smallest ROI frame Z-coordinate.

  • Highest object point: Sort objects by the highest detected point.

  • Largest product (Flex only): Objects are sorted from big to small volume or surface.

  • Highest matching score (Teach only): Sort objects with the highest model matching score first.

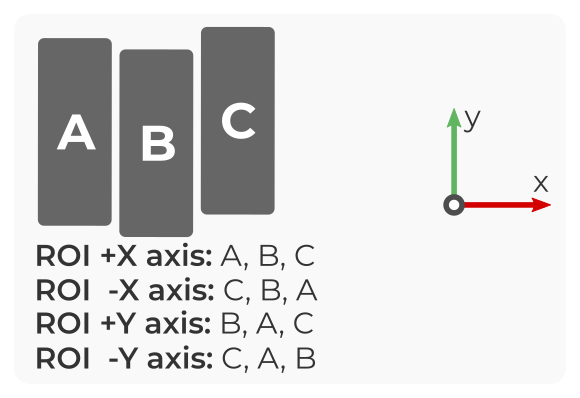

  • Axis Sweep: An axis sweep orders objects according to the value along the selected direction.

../../_images/axis_sweep.png

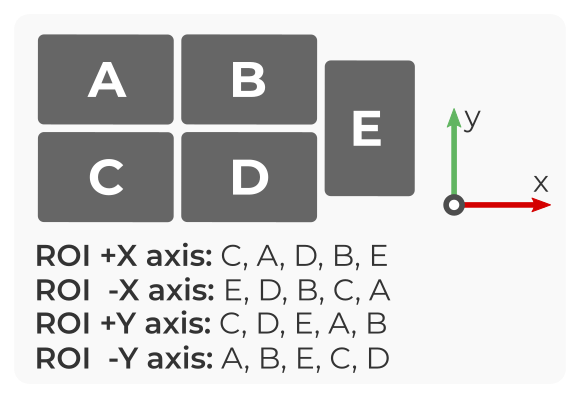

  • 2D Pattern sweep: A 2D pattern sweep orders objects by performing a pattern that advances along the selected direction.

../../_images/2d_pattern_sweep.png

The Axis Sweep and 2D Pattern Sweep ordering strategies are useful for depalletization and other semi-structured picking applications.
