Pickit processor 3.0-d

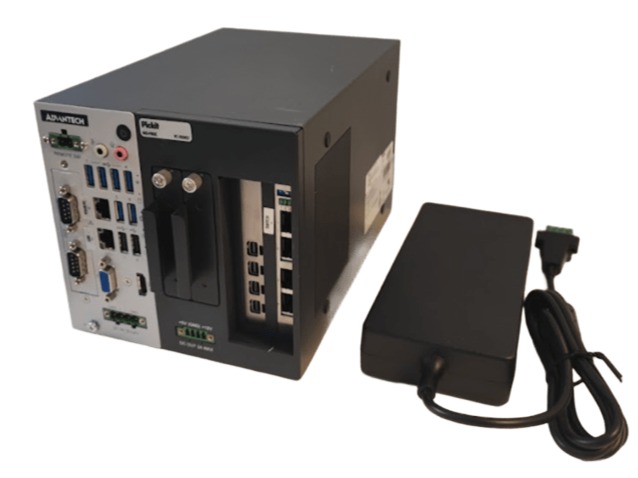

The Pickit processor 3.0-d delivers high computing performance and features a dedicated GPU housed in a robust enclosure. It comes with a 19-24 V DC power adapter.

../../../_images/processor-three-d-power-supply.jpg

Processor ports

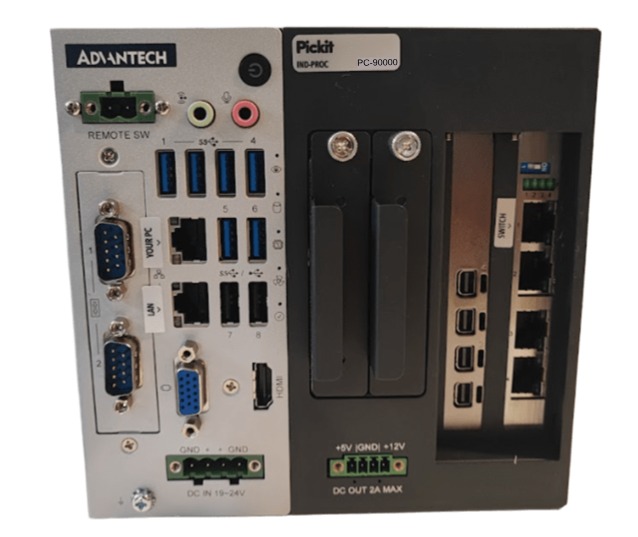

The front side of the processor has:

1x power switch button that serves as a LED indicator as well.
6x RJ-45 ports, three of which are used by Pickit. Operational ports are labeled: “Your_PC”, “LAN” and “Switch”. Refer to this article to learn how to configure the network settings of your Pickit system.
Other USB ports, display ports and jacks that are not used by Pickit.

../../../_images/processor-three-d-front.jpg

Power input and installation

The Pickit processor 3.0-d comes with a 19-24 V DC output power supply adapter.

Replacing the power adapter with a DIN rail power supply is possible. In this case, the DIN power supply should be ITE rated, and its power cannot be shared with inductive loads like motors, relays and solenoids.

The power supply connects to the “DC IN” port on the back side of the processor.

../../../_images/connect-power-cable.png

Note

In case of a power failure while the processor is on, it will restart automatically when power is restored. Pickit will start with robot mode enabled, that is, ready to receive robot commands.

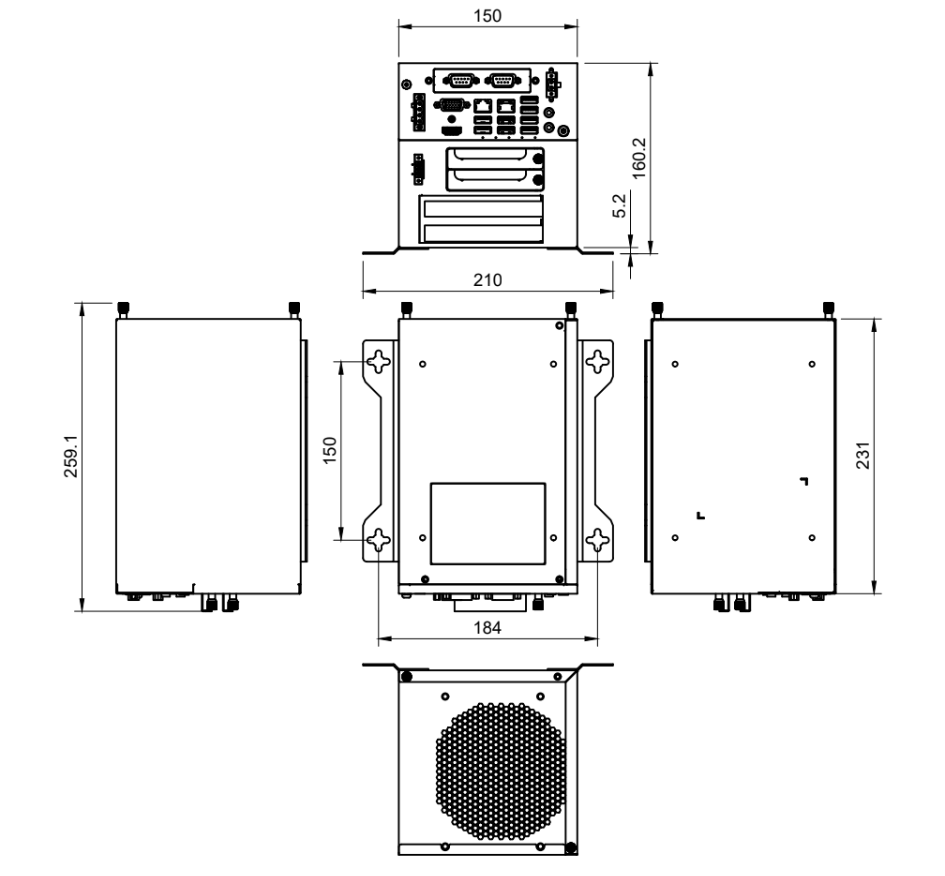

Mechanical specifications

Dimensions (W x H x D): 155 x 230 x 150 mm (6.1” x 9.05” x 5.9”)
Weight: 3.5 kg
Installation: Desktop/wall mount

Environment specifications

Operating Temperature: 0°C to 45°C
Non-operating temperature: -40 °C to 85 °C
Vibrations (5-500Hz): 3 Grms, random, 1 hr/axis
IP rating: IP20
Humidity: 95% @ 40 °C (non-condensing)
EMC certifications: CE/FCC Class A, CCC
Safety certifications: UL, CCC

Power specifications

Input Voltage power: 19-24 V DC
Input Current: 8-6.5 A
Power consumption: 180W

Power Adapter specifications

Input voltage: 100 - 240 V AC
Input current: 2.0 A AC
Input frequency: 50 - 60 Hz
