Pickit processor 4.0a

The Pickit processor 4.0a delivers higher computing power with respect to the processor 3.0a and features a dedicated GPU housed in a robust enclosure. It comes with a 19-24 V DC power adapter.

Find the complete technical specifications in this datasheet.

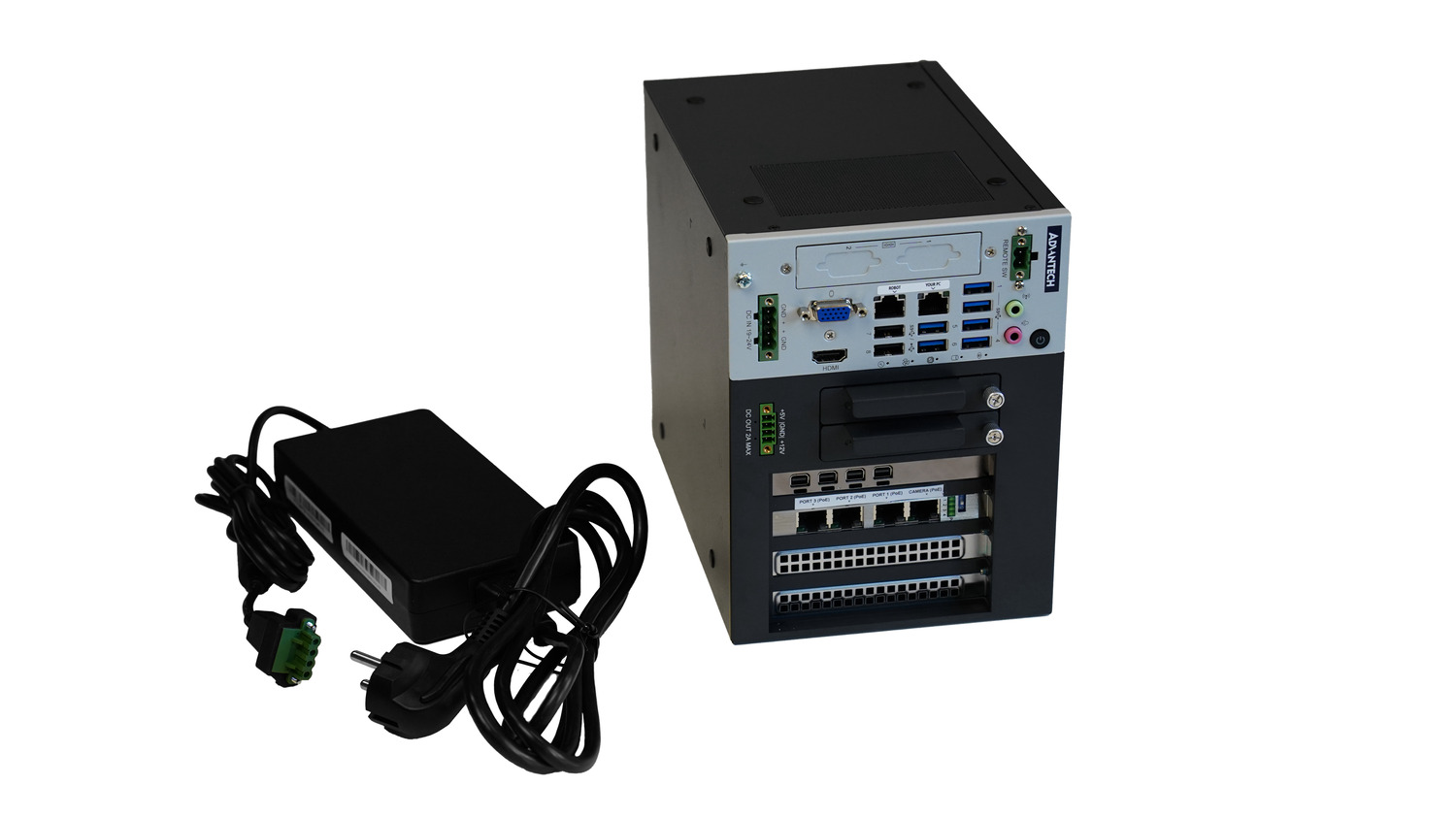

Pickit processor 4.0a with its power adapter, power cord and green terminal-block DC connector

Processor ports

The front side of the processor has:

  • 1x power switch button that serves as a LED indicator as well.

  • 6x RJ-45 ports, four of which support Power over Ethernet, for powering the SD2 camera. Refer to this article to learn how to configure the network settings of your Pickit system.

  • Other USB ports, display ports and jacks that are not used by Pickit.

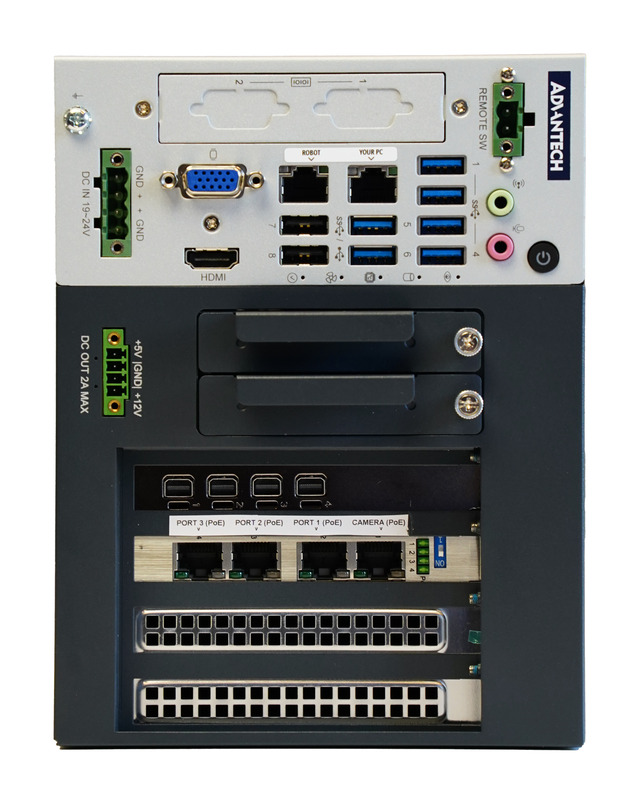

Front panel of the Pickit processor 4.0a: DC IN 19-24V terminal block, power button, ROBOT and YOUR PC Ethernet ports, USB, HDMI and VGA ports, and a network card with CAMERA (PoE), PORT 1 (PoE), PORT 2 (PoE) and PORT 3 (PoE) Ethernet ports

Power input and installation

The Pickit processor 4.0a comes with a 19-24 V DC output power supply adapter.

Replacing the power adapter with a DIN rail power supply is possible. In this case, the DIN power supply should be ITE rated, and its power cannot be shared with inductive loads like motors, relays and solenoids.

The power supply connects to the “DC IN” port on the back side of the processor.

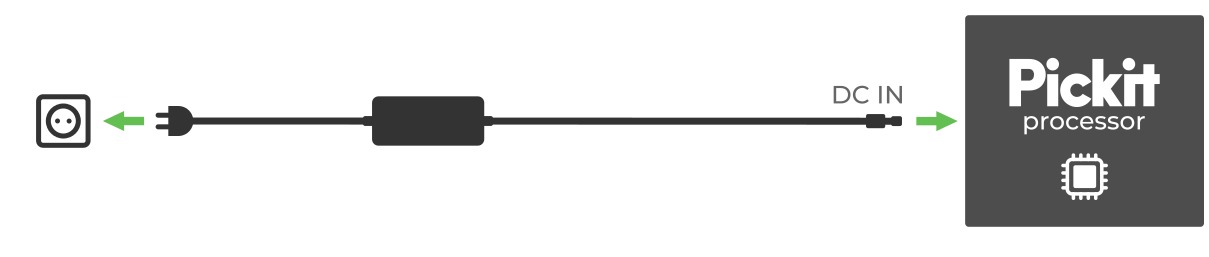

Power cable diagram: the power supply plugs into a wall socket on one end and into the DC IN port of the Pickit processor on the other

Note

In case of a power failure while the processor is on, it will restart automatically when power is restored. Pickit will start with robot mode enabled, that is, ready to receive robot commands.

Mechanical specifications

  • Dimensions (W x H x D): 155 x 230 x 150 mm (6.1” x 9.05” x 5.9”)

  • Weight: 3.5 kg

  • Installation: Desktop/wall mount

Environment specifications

  • Operating Temperature: 0°C to 45°C

  • Non-operating temperature: -40 °C to 85 °C

  • Vibrations (5-500Hz): 3 Grms, random, 1 hr/axis

  • IP rating: IP20

  • Humidity: 95% @ 40 °C (non-condensing)

  • EMC certifications: CE/FCC Class A, CCC

  • Safety certifications: UL, CCC

Power specifications

  • Input Voltage power: 19-24 V DC

  • Input Current: 8-6.5 A

  • Power consumption: 180W

Power Adapter specifications

  • Input voltage: 100 - 240 V AC

  • Input current: 2.0 A AC

  • Input frequency: 50 - 60 Hz

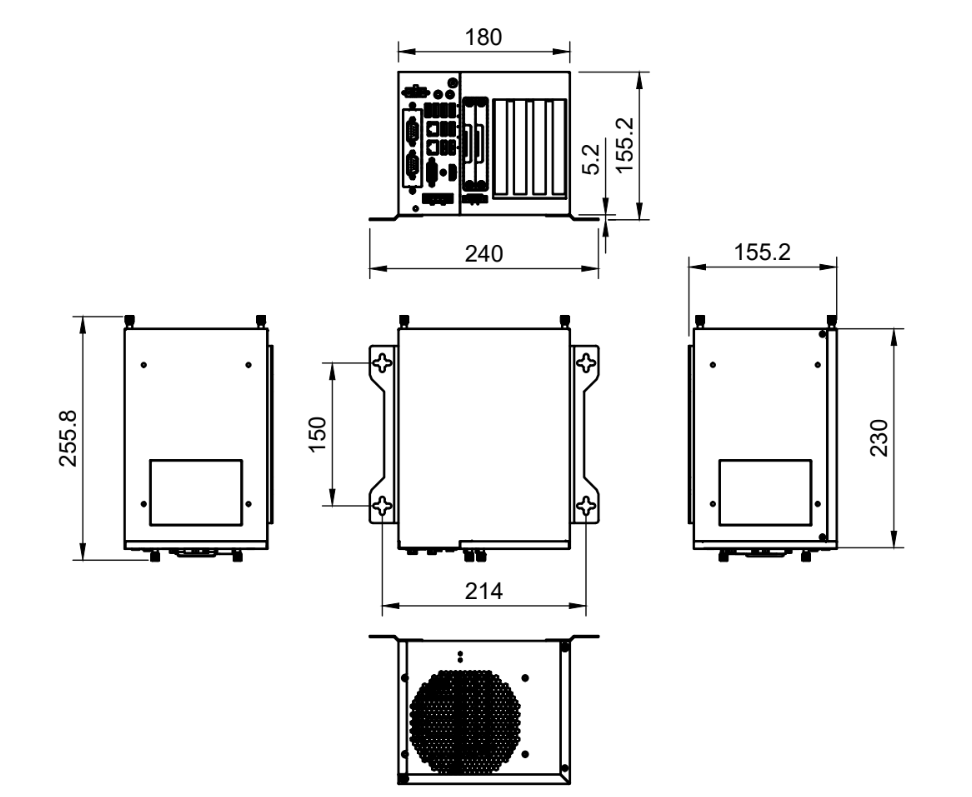

Dimension drawing of the Pickit processor 4.0a in mm: front 180 x 155.2, base width with brackets 240, depth 230 to 255.8, wall-mount bracket hole spacing 150 and width 214
