Laser triangulation camera cables

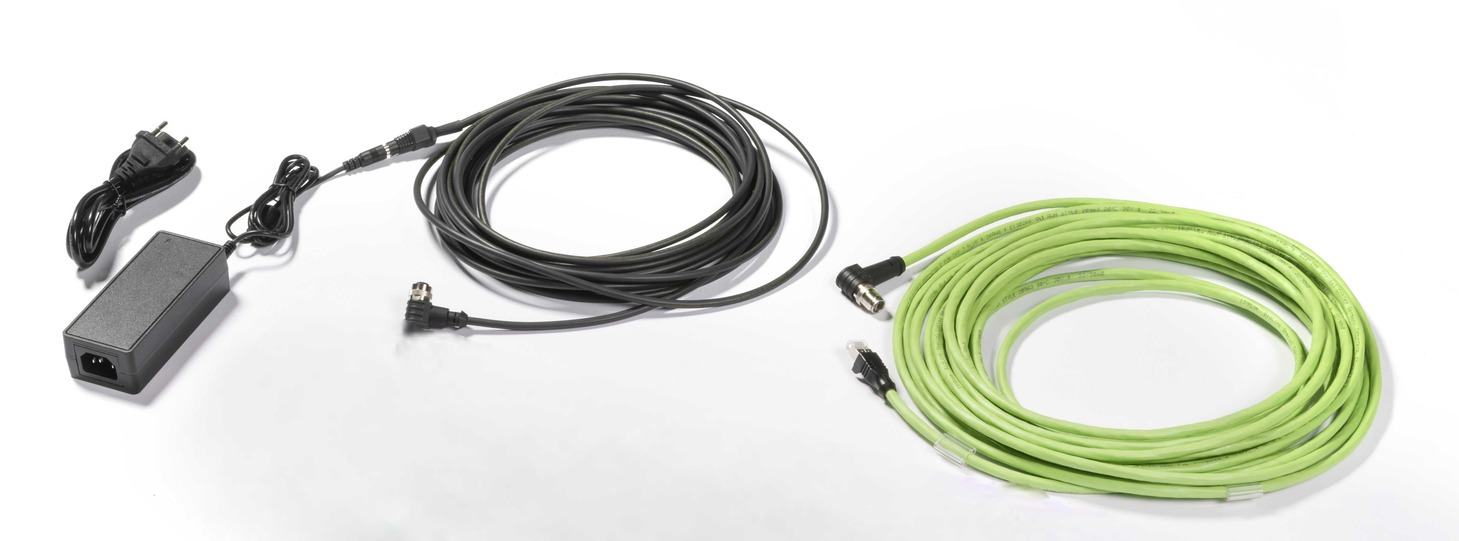

The laser triangulation cameras use two separate cables for power and data. Details of the cable characteristics can be found in the respective datasheets:

  • Power cable. It consists of a 24V 3A power supply unit + 10m cable (datasheet).

  • Data cable. Based on Ethernet technology, it consists of a green cable of 10m. (datasheet).

../../../_images/XL-HD_cables.jpg

Make sure that on the camera side, both power and data connectors are tightly screwed to their plugs. On the Pickit processor side, connect the data cable to the Ethernet port labeled CAMERA.
