Pickit processor

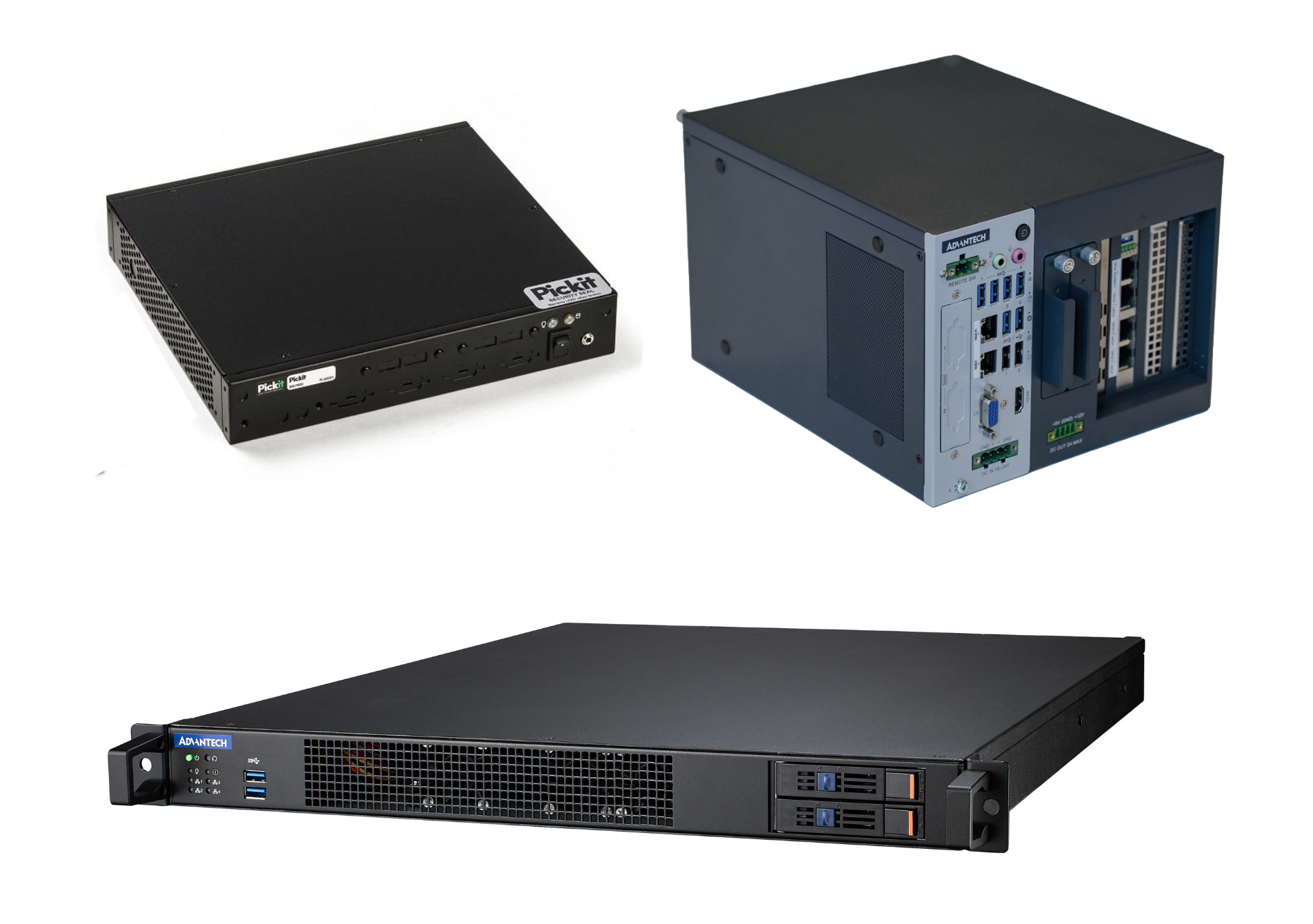

The Pickit processor is the computing unit that runs the Pickit software. It performs all computations required to identify objects within 3D point clouds and transmits their coordinates to the robot. The current generation represents the fourth iteration of Pickit processor hardware. The articles below describe the processor types currently supported in Pickit 4.0:
Pickit processor 3.0a inside the Essential bundle.
Pickit processor 4.0a inside the Standard bundle.
Pickit processor 4.0b inside the High performance bundle.
Tip
Read this article to learn how to set up the processor in your picking application.
Processors performance comparison
Choosing Pickit processors with higher performance levels can significantly optimize the total cycle time of Pickit applications by accelerating both image capture and object detection.
While actual results will depend on the captured point cloud and the selected detection parameters, users will observe significant speed improvements in detection times across most applications. Higher performance processors also accelerate image capture, particularly when using Structured Light Cameras.
The table below compares the overall average performance of Standard Pickit processor 4.0a and the High Performance processor Pickit processor 4.0b against the Essential processor:ref:pickit-processor-three-a.
Processor 3.0a |
Processor 4.0a |
Processor 4.0b |
|
|---|---|---|---|
Image Capture (Structured Light Cameras) |
Baseline |
~30% faster |
~50% faster |
Detection |
Baseline |
~30% faster |
~70% faster |
Note
Are you considering a processor upgrade to optimize your cycle time? Contact support@pickit3d.com for an assessment of the expected improvements for your specific setup.
