Pickit processor 4.0b

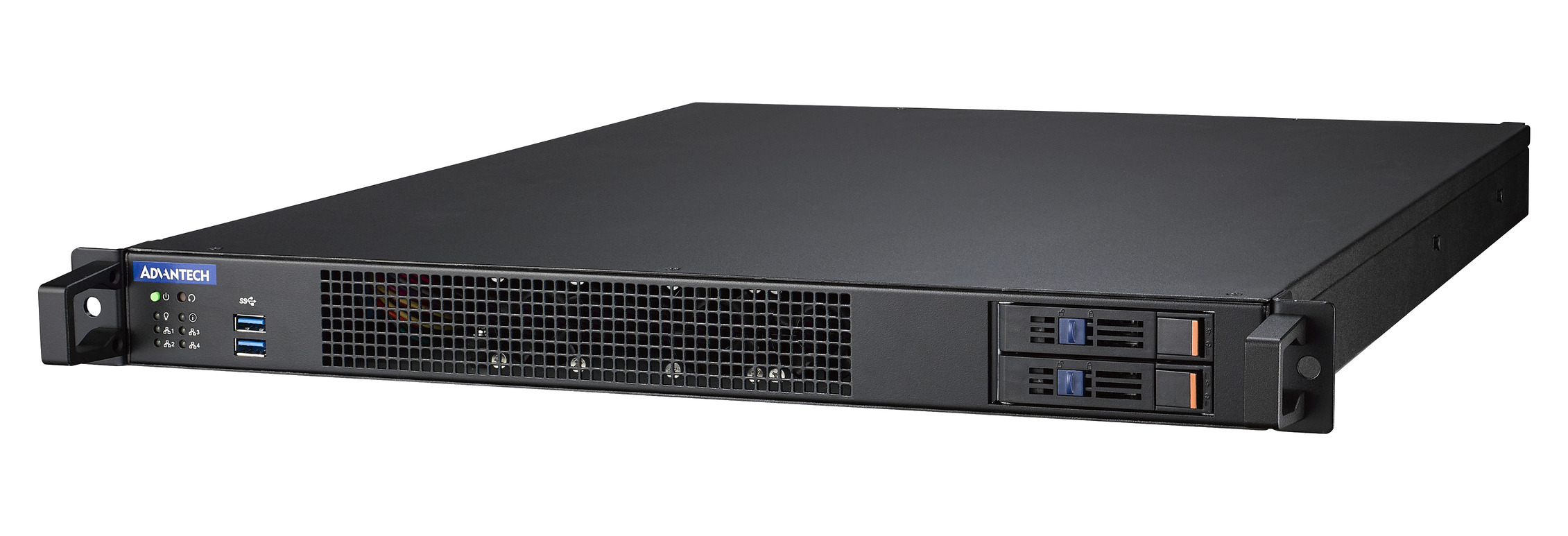

The Pickit processor 4.0b High performance delivers higher computing power with respect to the processor 4.0a and processor 3.0a . It comes in a 1U server rack form factor and it features a dedicated GPU.

Find the complete technical specifications in this datasheet.

../../../_images/processor-four-b.jpg

Processor ports

The back side of the processor has:

  • 8x RJ-45 ports, four of which support Power over Ethernet, for powering the SD2 camera. Refer to this article to learn how to configure the network settings of your Pickit system.

  • 1x C14 inlet for power supply.

  • Other USB ports, display ports and jacks that are not used by Pickit.

Power input and installation

The Pickit processor 4.0b is powered via a standard C14 inlet for 500W Single PSU and works with AC 100-240V.

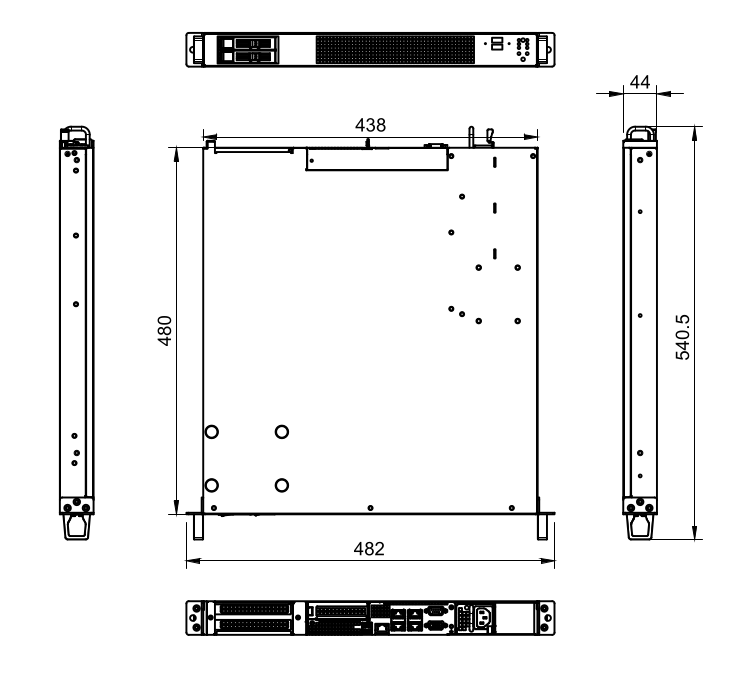

Mechanical specifications

  • Dimensions (W x H x D): 438 mm x 44 mm x 480 mm ( 17.24” x 1.73” x 18.9”)

  • Weight: 7.0 kg

  • Installation: rack mount (1U)

Environment specifications

  • Operating Temperature: 0°C to 40°C

  • Non-operating temperature: -40 °C to 70 °C

  • Vibrations (5-500Hz): 2 Grms, random, 1 hr/axis

  • IP rating: IP20

  • Humidity: 95% @ 40 °C (non-condensing)

  • EMC certifications: CE/FCC

Power specifications

  • Input Voltage power: AC 100-240V

  • Input Current: 2-5 A

  • Power consumption: up to 500W
