Laser triangulation camera cables

The laser triangulation cameras use two separate cables for power and data. Details of the cable characteristics can be found in the respective datasheets:

  • Power cable. It consists of a 24V 3A power supply unit + 10m cable (datasheet).

  • Data cable. Based on Ethernet technology, it consists of a green cable of 10m. (datasheet).

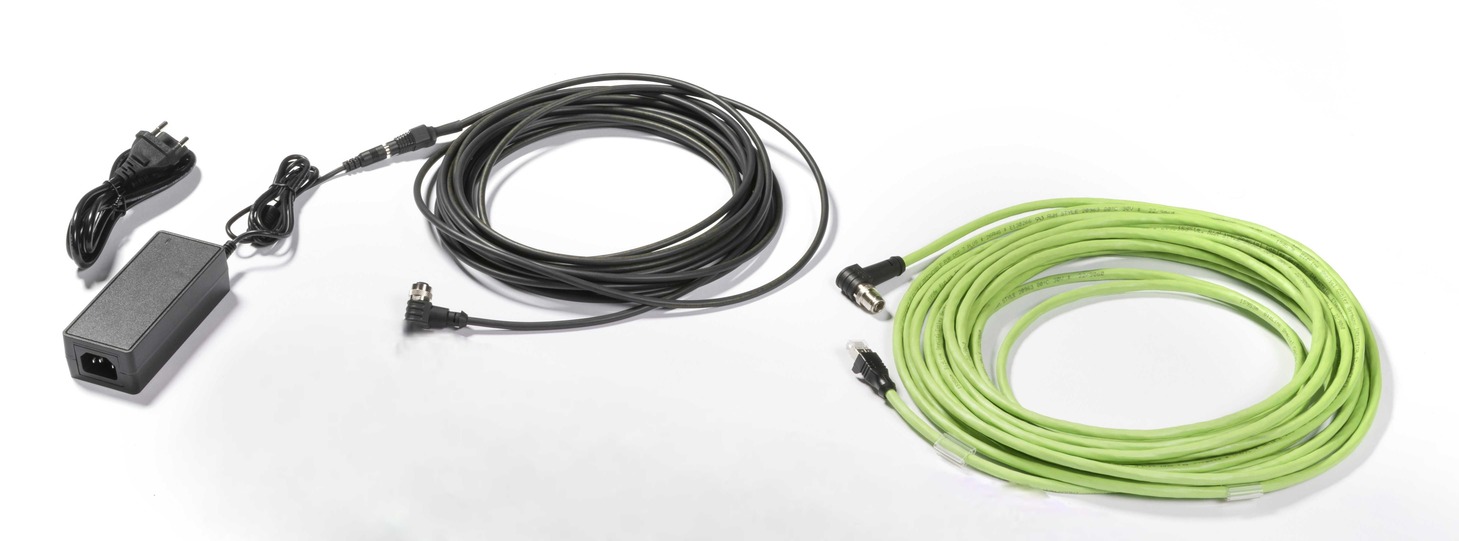

Laser triangulation camera cables: 24V power supply unit with black power cable ending in an angled connector, and green Ethernet data cable with an angled camera connector and an RJ45 plug

Make sure that on the camera side, both power and data connectors are tightly screwed to their plugs. On the Pickit processor side, connect the data cable to the Ethernet port labeled CAMERA.

Connection diagram: robot connects to the ROBOT port and Pickit camera to the CAMERA port of the Pickit processor (required); an external computer on the YOUR PC port runs the web interface and the LAN port links to the Internet for remote service (optional)
