Note

The SD2 camera is powered through Power over Ethernet (PoE), so it needs to be connected to a PoE-enabled port. Refer to the article on connecting components, and to the specifications of your Pickit processor to learn more.

Fixed camera cable

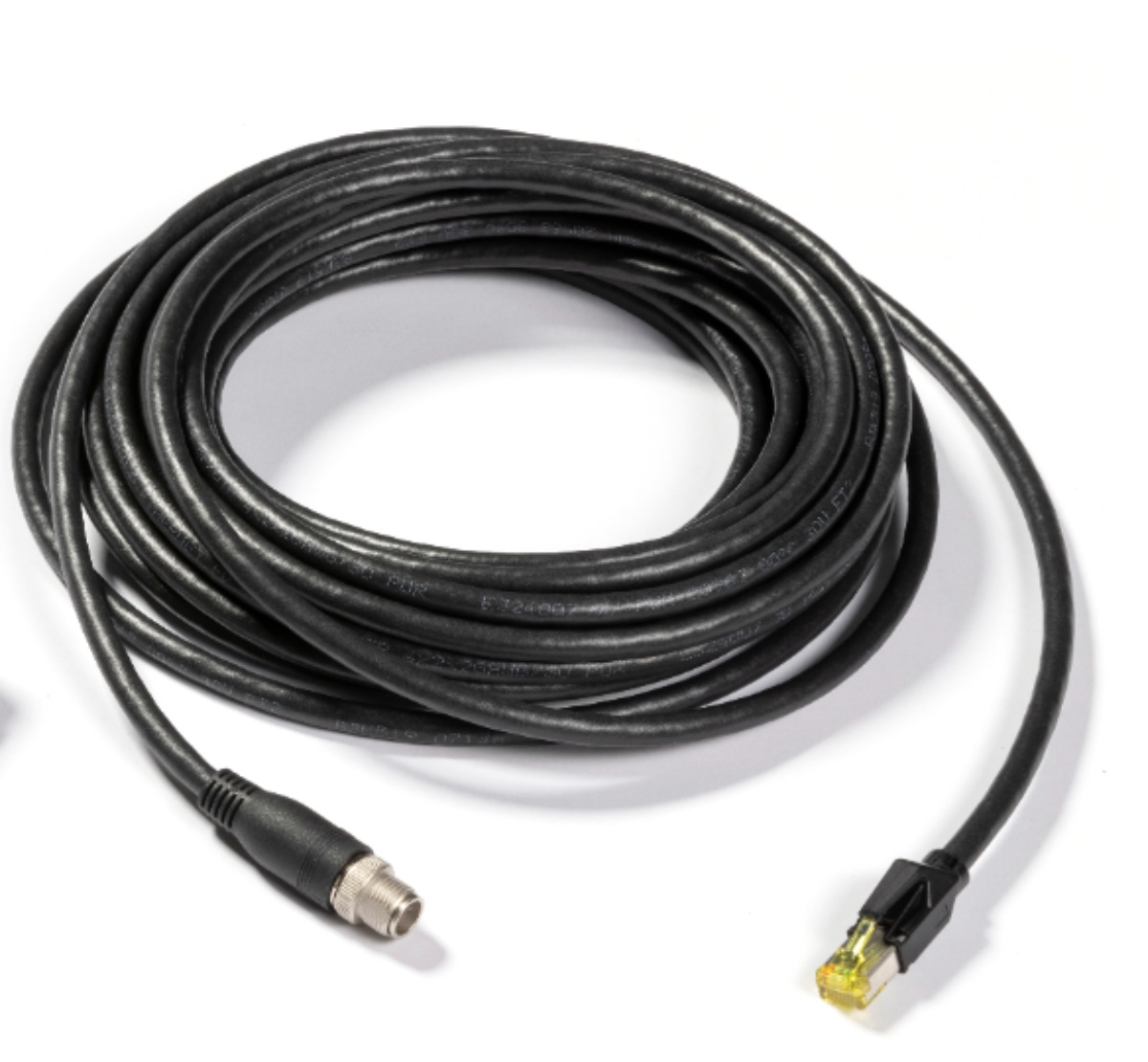

For fixed mount SD2 cameras the best solution is to use the 10m cable Ethernet cable (datasheet).

../../../_images/sd2-fix.jpg

This cable needs to be mounted between the camera and the Ethernet port labeled CAMERA of the Pickit processor, as shown.

../../../_images/fixed-camera-cable-with-robot.png

If you need to mount the camera further from the processor, use a longer Ethernet cable, making sure that it is CAT 6A or higher.

Robot mounting kit

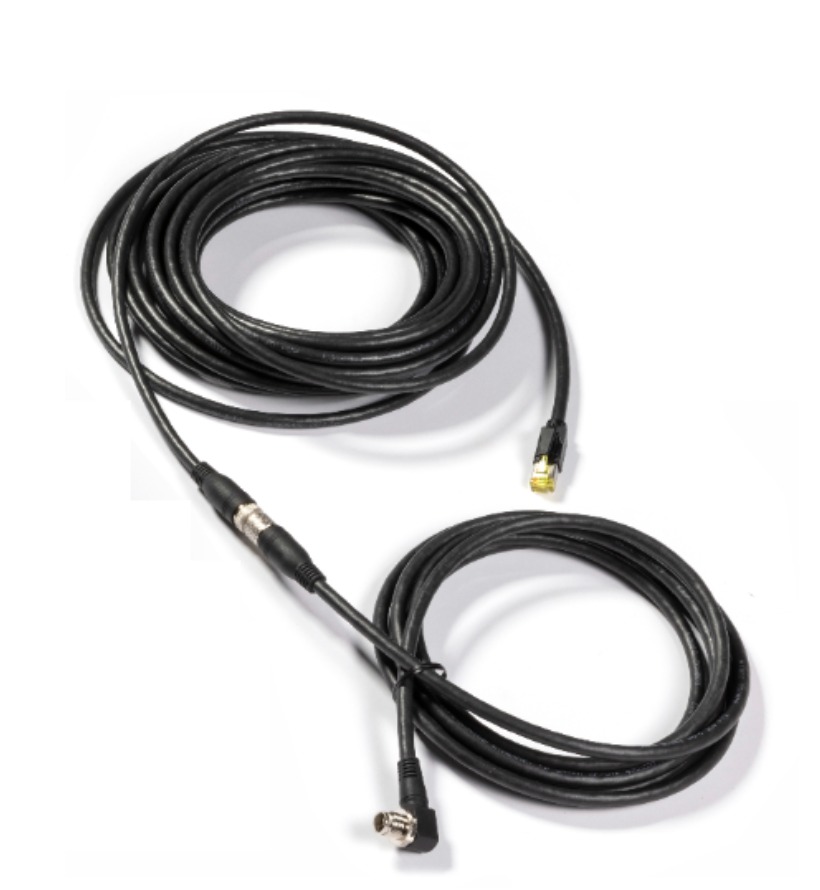

The robot mounting kit consists of two cables, shown below:

  • Standard 10m cable: the same type used for fix camera mounting. It will be connected to the Ethernet port labeled CAMERA of the Pickit processor.

  • A 3m extension cable: this extension cable is connected to the 10m one and on the camera side it has a 90deg angle M12 connector. This will reduce space needed by the camera + cable connector, for a more compact mount.

pic1 pic2

Details of the mechanical and electrical characteristics of this cable can be found in the datasheet.

../../../_images/robot-mount-kit-with-robot.png

Tip

Make sure you follow the best practices for routing the cables from the robot base to the camera.
