Pickit processor 3.0-d
The Pickit processor 3.0-d delivers high computing performance and features a dedicated GPU housed in a robust enclosure. It comes with a 19-24 V DC power adapter.

Processor ports

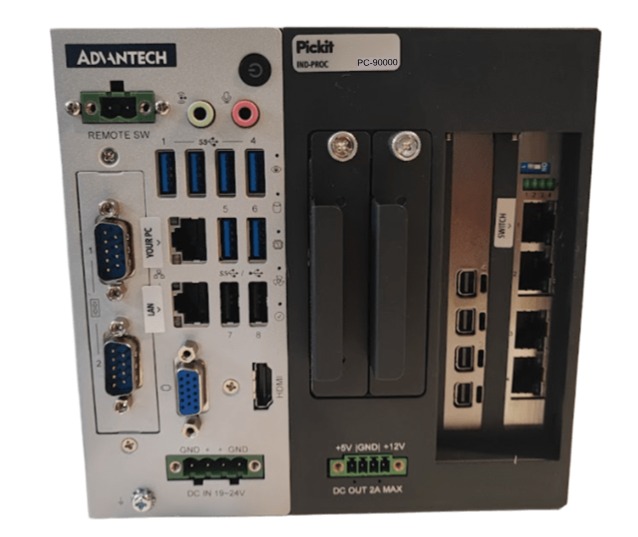

The front side of the processor has:
1x power switch button that serves as a LED indicator as well.
6x RJ-45 ports, three of which are used by Pickit. Operational ports are labeled: “Your_PC”, “LAN” and “Switch”. Refer to this article to learn how to configure the network settings of your Pickit system.
Other USB ports, display ports and jacks that are not used by Pickit.

Power input and installation

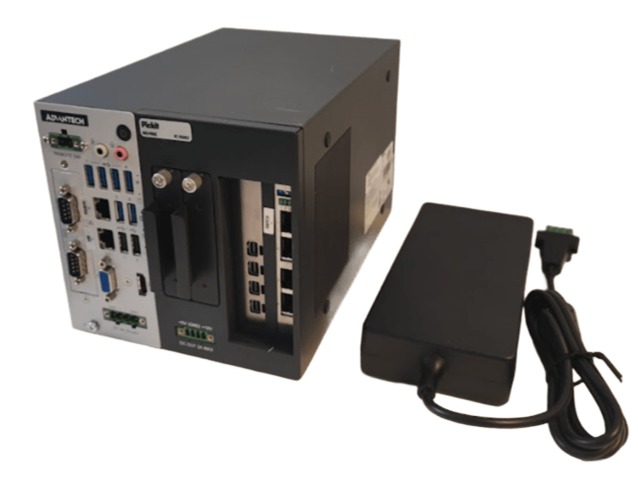

The Pickit processor 3.0-d comes with a 19-24 V DC output power supply adapter.
Replacing the power adapter with a DIN rail power supply is possible. In this case, the DIN power supply should be ITE rated, and its power cannot be shared with inductive loads like motors, relays and solenoids.
The power supply connects to the “DC IN” port on the back side of the processor.

Note
In case of a power failure while the processor is on, it will restart automatically when power is restored. Pickit will start with robot mode enabled, that is, ready to receive robot commands.
Mechanical specifications

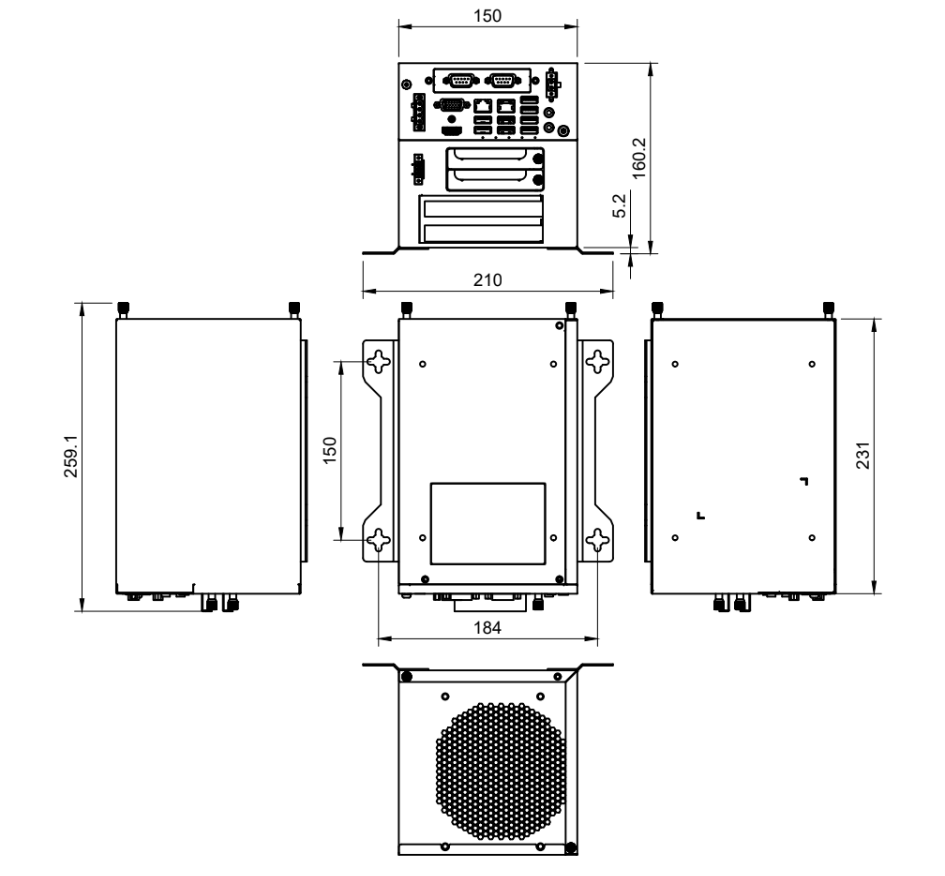

Dimensions (W x H x D): 155 x 230 x 150 mm (6.1” x 9.05” x 5.9”)
Weight: 3.5 kg
Installation: Desktop/wall mount
Environment specifications
Operating Temperature: 0°C to 45°C
Non-operating temperature: -40 °C to 85 °C
Vibrations (5-500Hz): 3 Grms, random, 1 hr/axis
IP rating: IP20
Humidity: 95% @ 40 °C (non-condensing)
EMC certifications: CE/FCC Class A, CCC
Safety certifications: UL, CCC
Power specifications
Input Voltage power: 19-24 V DC
Input Current: 8-6.5 A
Power consumption: 180W
Power Adapter specifications
Input voltage: 100 - 240 V AC
Input current: 2.0 A AC
Input frequency: 50 - 60 Hz
