Pickit camera cables
This article lists the available options for connecting a Pickit camera to the Pickit processor.
Warning
Use only officially supported Pickit cables, without modification. Failing to do so will void the warranty of the Pickit system.
These cables comply with electrical and mechanical characteristics required by robotic picking applications. Using cables with inferior characteristics might lead to unreliable camera operation and camera disconnections, among other issues.
SD camera cables
The cables for the Pickit SD cameras are based on USB 2.0 technology. It carries both power and data to the camera, and comes in two versions, depending on the camera mount:
The robot mounting kit, which has a total length of 20 meters.
The fixed camera cable, which is 10 meters long.
HD camera cables
The Pickit HD cameras use two separate cables for power and data, with different options depending on the camera:

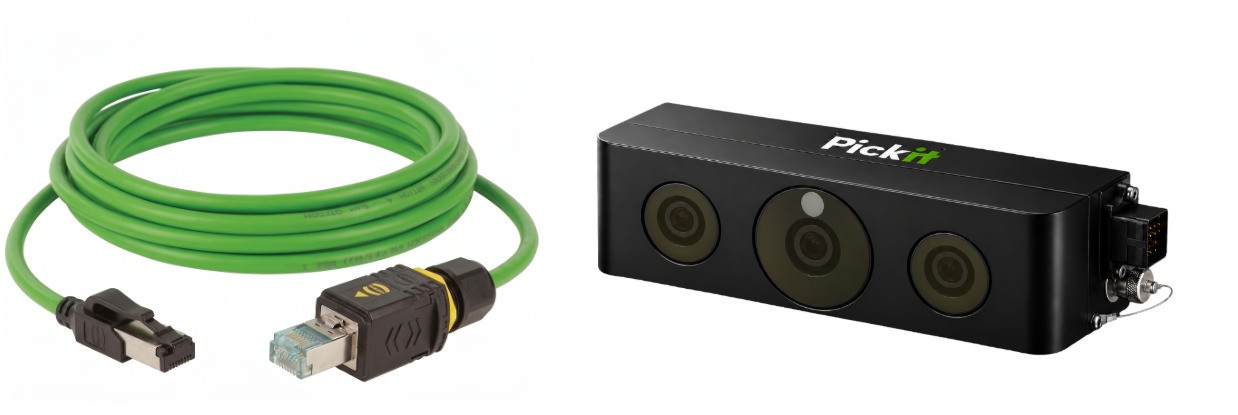

M-HD2 cameras use an Ethernet data cable.
M-HD and L-HD cameras use a USB 3.0 data cable.
