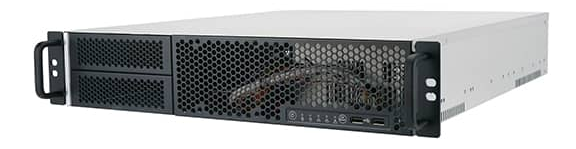

Pickit processor 4.0c

The Pickit processor 4.0c High performance delivers high computing power together with a dedicated GPU. It comes in a 2U server rack form factor.

Find the complete technical specifications in this datasheet.

../../../_images/processor-four-c.png

Processor ports

The back side of the processor has:

  • 8x RJ-45 ports, four of which support Power over Ethernet, for powering the SD2 camera. Refer to this article to learn how to configure the network settings of your Pickit system.

  • 1x C14 inlet for power supply.

  • Other USB ports, display ports and jacks that are not used by Pickit.

Power input and installation

The Pickit processor 4.0c is powered via a standard C14 inlet and works with AC 100-240V.

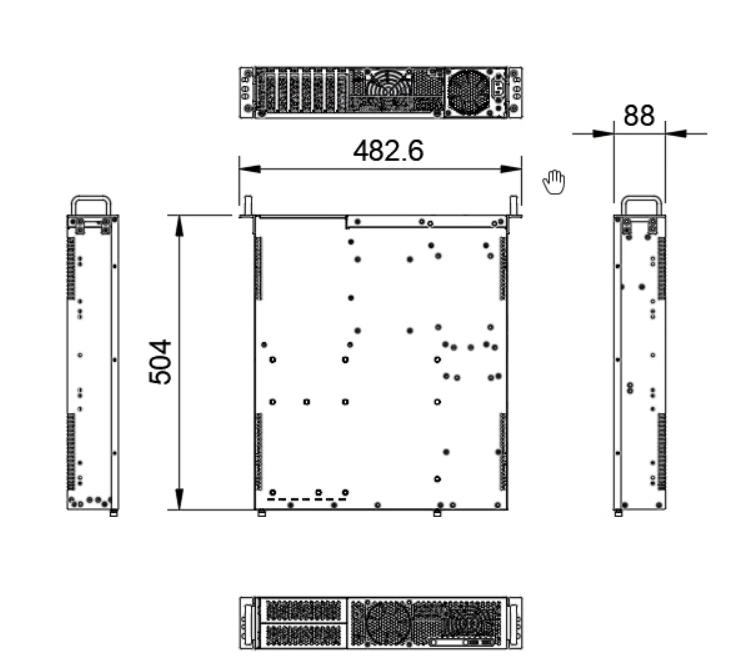

Mechanical specifications

  • Dimensions (W x H x D): 482.6 x 88.9 x 504 mm (19.0” x 3.5” x 19.8”)

  • Weight: 10 kg

  • Installation: rack mount (2U)

Environment specifications

  • Operating Temperature: 0°C to 40°C

  • Non-operating temperature: -20 °C to 75 °C

  • Vibrations (5-500Hz): 2 Grms

  • IP rating: IP20

  • Humidity: 90% @ 40 °C (non-condensing)

  • EMC certifications: CE/FCC

Power specifications

  • Input Voltage power: AC 100-240V

  • Input Current: 2-5 A

  • Power consumption: up to 500W

../../../_images/processor-four-c-drawing.png
